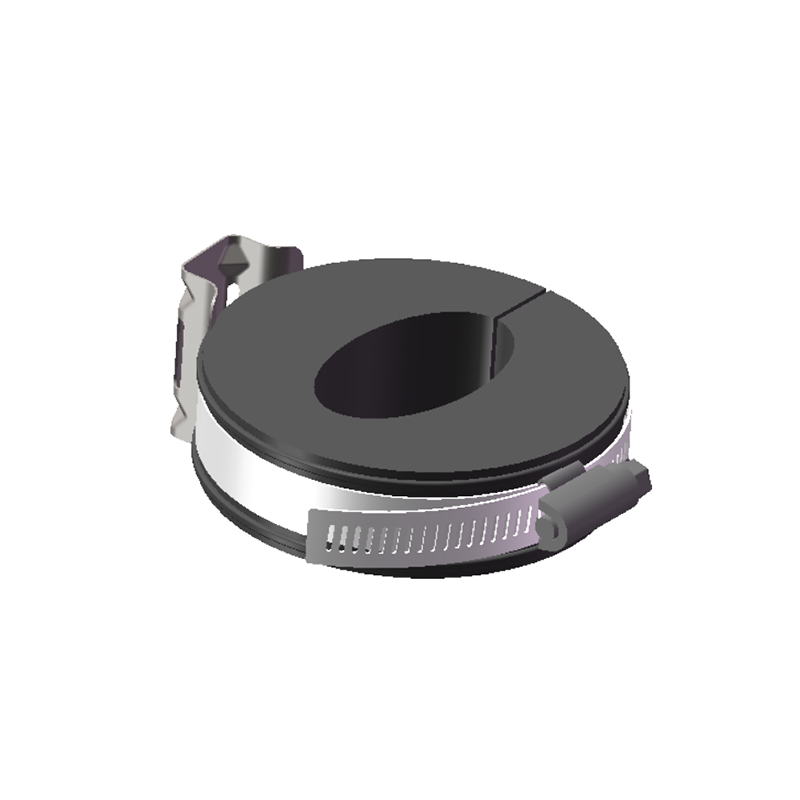

RSB Radiating Clamp Kit, for 1-5/8 in cable

Mounting Type: Metal
Cable Size: 1-5/8"

Material Number: 6003769

Easy and quick installation. Robust design & material for outdoor / indoor use. Fixed wall distance 80 mm. Operation Temperature -40~85 ℃.

Add to Cart Download Datasheet

Product Classification
Material Code	6003769
Part Number	–
Status	Active
Detail Description	Radiating Clamp for 1-5/8 in radiating cable

General Specifications
Accessories	RSB clamp & 80mm base & M8 Flat washer & M895 screw & M830 expansion pipe
Cables per hanger	1
Color	Black
Material Specifications
Clamp	Stainless steel
Base	Polyamide PA6 Low Smoke Zero Halogen
Flat washer	Stainless steel
Screw	Stainless steel
Expansion Pipe	Stainless steel
Dimensions
Nominal Size	1-5/8 in
Hanger Spacing,maximum	10.0 m \| 32.8 ft
Environmental Specifications
Flammability	UL94V-0
Packaging and Weights
Height, packed	180 mm \| 7.0 in
Width, packed	310 mm \| 12.2 in
Length, packed	400 mm \|15.75 in
Packaging Quantity and UOM	1 Kit
Weight, gross	0.13 kg \|0.29 lb
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
