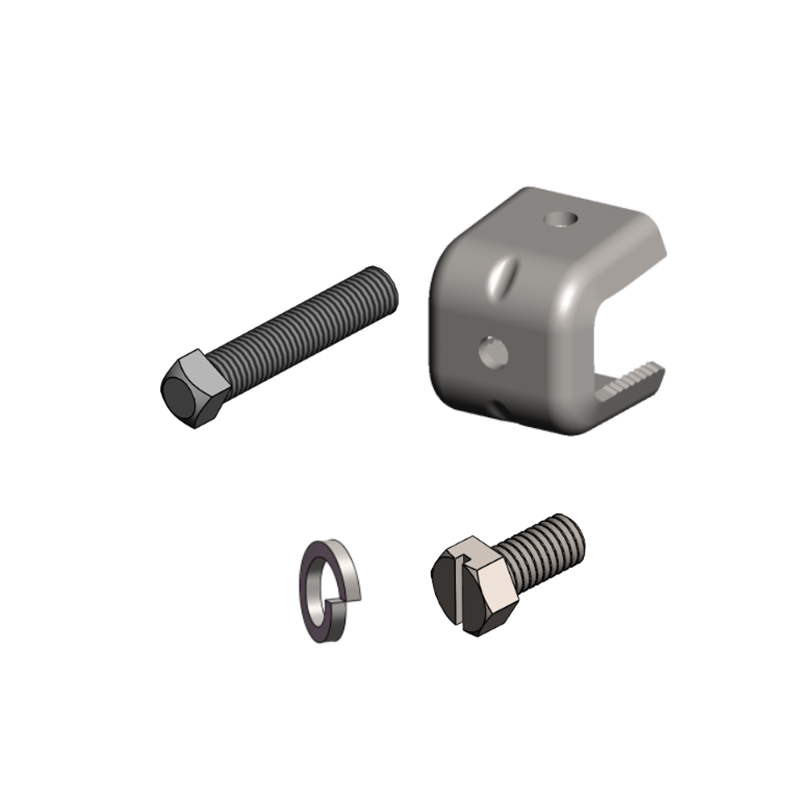

Angle Adapter Kit, With 3/8″ Square Bolt , 3/8″ Slotted Hexagon Bolt, 3/8″ Spring Washer

Angle Adapter Kit, With 3/8″ Square Bolt , 3/8″ Slotted Hexagon Bolt, 3/8″ Spring Washer

Item Number 6009384

Manufactured by stainless steel. Excellent for outdoor & indoor use.

Product Classification
Item Number	6009384
Part Number	–
Detail Description	Angle adapter kit, with 3/8″ square bolt, 3/8″ slotted fillister bolt, 3/8″ spring washer

General Specifications
Material	Stainless steel 304
Color	Natural
Mounting Hole	3/8 in-16UNC tapped hole
Attachment Mounting Hole	3/8 in-16UNC tapped hole
Dimensions
Slotted Hexagon Bolt Size	3/8 in-16UNC X 3/4 in
Square Bolt Size	3/8 in-16UNC X 1-3/4 in
Spring Washer Size	3/8 in
Angle Adapter Height	43.90 mm \| 1.73 in
Angle Adapter Width	46.25 mm \| 1.82 in
Angle Adapter Length	49.80 mm \| 1.96 in
Environmental Specifications
Corrosion Resistance	≥96 hours in salt spray chamber, base on IEC 60068-2-11
Packaging and Weights
Height, Packed	320 mm \| 12.598 in
Width, Packed	220 mm \| 8.661 in
Included	Ten angle adapter \| Ten square Bolt \| Ten slotted hexagon bolt \| Ten spring washer
UOM	Kit of 10
Packaging	Bag
Weight, Gross	2.1 kg \| 4.63 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
