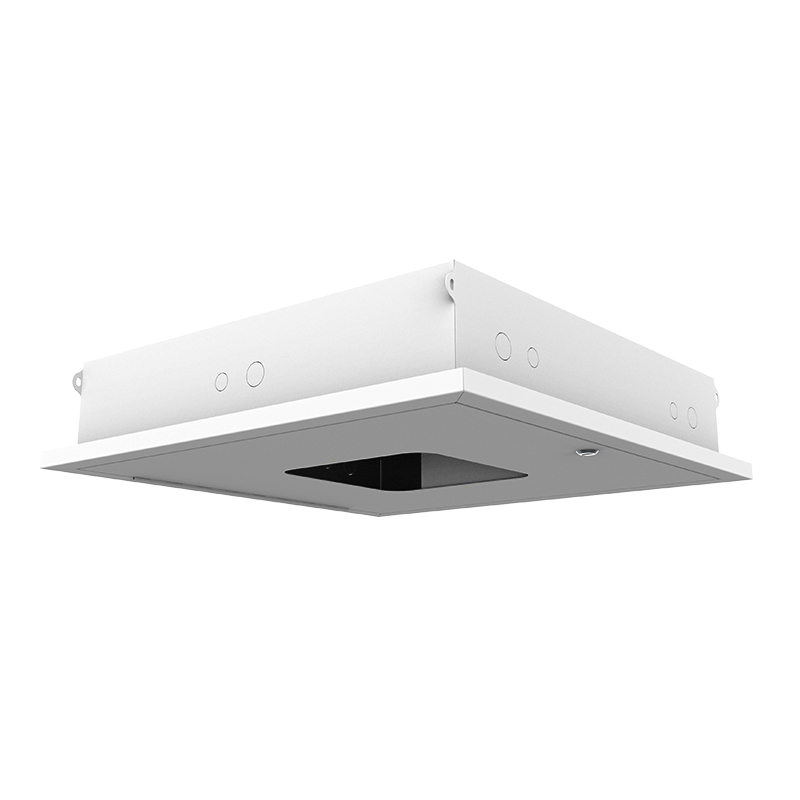

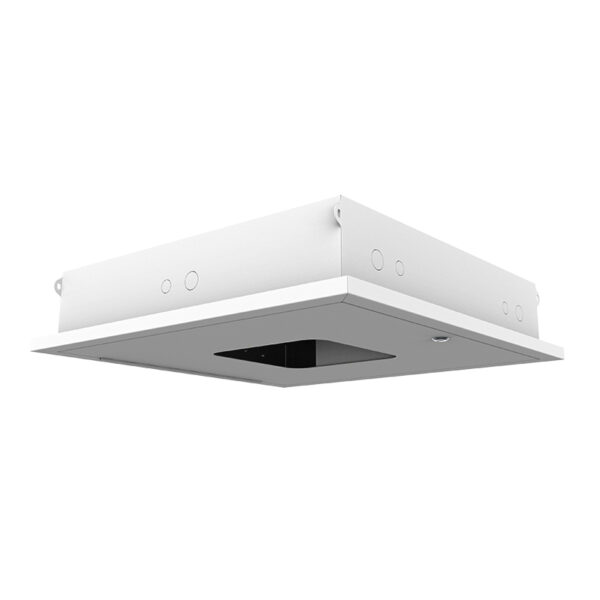

Ceiling Enclosure Assembly, 603.3×603.3×128.2mm
Item Number 6009565
Secure, conceal, and protect Wi-Fi and small cell APs in suspended ceiling areas. Fit for 2′ x 2′ ceiling tile. Locking ceiling tile enclosure designed. Enclosure back-box is effective dust barrier. Maximum weight to be installed in the unit is 44 lbs.
Product Classification
| Product Classification | |
| Item Number | 6009565 |
| Part Number | – |
| Detail Description | Ceiling enclosure Assembly, 603.3×603.3×128.2mm |
General Specifications
| General Specifications | |
| Material | Steel |
| Surface Treatment | Powder Coated |
| Color | White |
| Dimensions | |
| Ceiling Tile Size | 603.3 x 603.3 mm | 23.75 in x 23.75 in |
| Height | 128.2 mm |5.04 in |
| Back-box Size | 546 x 546 mm | 21.5 in x 21.5 in |
| Packaging and Weights | |
| Height, Packed | 290 mm | 11.42 in |
| Width, Packed | 650 mm | 25.60 in |
| Length, Packed | 720 mm | 28.35 in |
| UOM | Pcs |
| Include | One key | Four support wire | Eight steel wire rope shackle | Four sheep eye tapping screw M6x50 | Four plastic anchor M8x50 | Four plastic cable tie 10×600 | One plastic cable tie 4×300 |
| Packaging | Bag |
| Weight gross | 13.5 kg | 29.8 lbs |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
