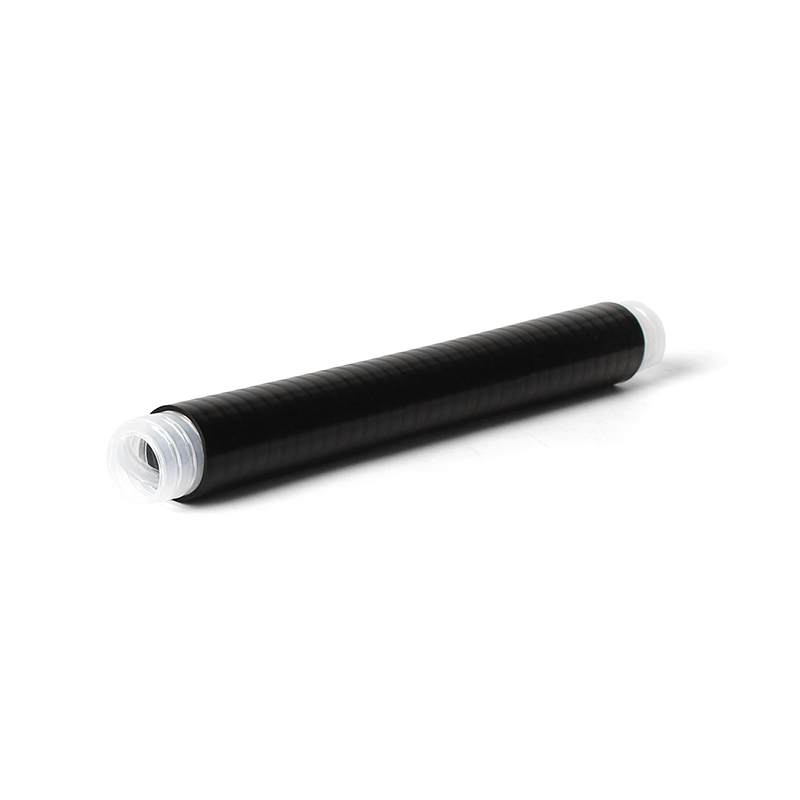

Cold Shrink Tube, φ15x150mm, Black
Item Number 6008810
Suitable for 195, 200, 240, 400, 1/4″ and 3/8″ cable assemblies with TNC, NEX10, SMA, QMA connectors. Used for GPS, Small Cell, Test & Measurement Jumpers Weatherproofing and Protection.
Product Classification
| Product Classification | |
| Item Number | 6008810 |
| Part Number | – |
| Detail Description | Cold shrink tube, φ15x150mm, black |
General Specifications
| General Specifications | |
| Material | Silicone |
| Cable type | Corrugated | Elliptical Waveguide | Smoothwall |
| Range | φ4.9-15 mm | 0.19-0.59 in |
| Color | Black |
| Mastic(Y/N) | N |
| Shrink Ratio | 4:1 |
| Dimensions | |
| Length Before Shrink | 150 mm | 6 in |
| Length After Shrink | 165 mm | 6.5 in |
| Inner Diameter Before Shrink(ID) | 15 mm | 0.6 in |
| Inner Diameter After Shrink(ID) | 4.9 mm | 0.19 in |
| Thickness After Shrink | 2.5 mm | 0.1 in |
| Environmental Specifications | |
| Operating Temperature | -60 °C to +90 °C (-76 °F to +194 °F) |
| Weatherproof Resistance | IP67, based on ISO20653:2013 |
| UV Resistance | ≥1000 hours, base on ASTM G154-16 |
| Packaging and Weights | |
| Height, Packed | 200 mm | 7.87 in |
| Width, Packed | 75 mm | 2.95 in |
| UOM | 1 Pcs |
| Packaging | Bag |
| Weight, Gross | 0.020 kg | 0.044 lbs |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
