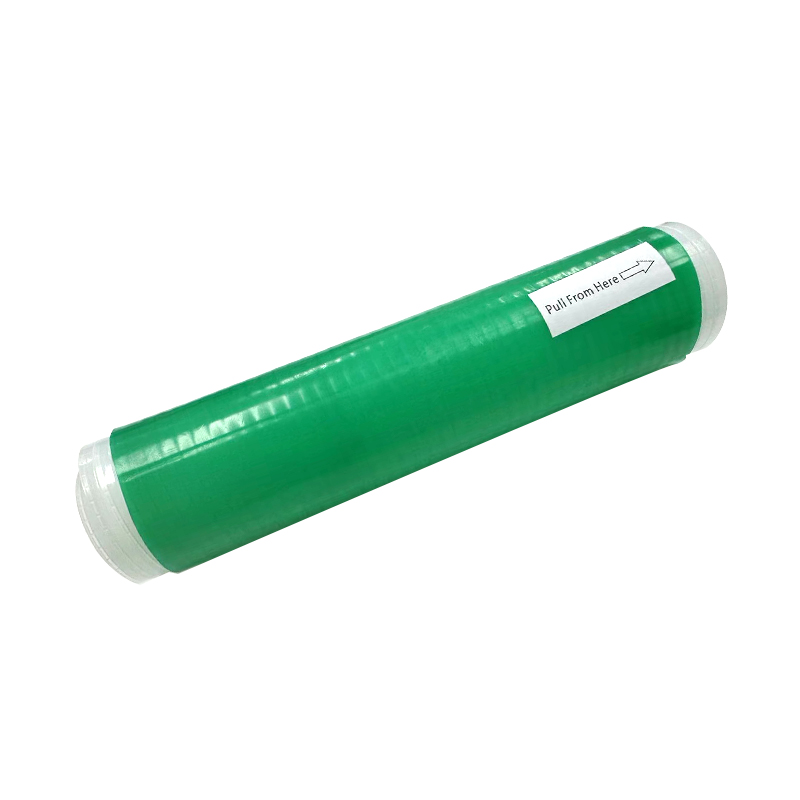

Cold Shrink Tube, φ40x170mm, Green
Item Number 6008426
Easy and quick installation. Manufactured from silicone rubber. Suitable for a wide range of cable sizes. No special tools or training required for installation. Offering good mechanical, insulation and sealing protection.
Product Classification
| Product Classification | |
| Item Number | 6008426 |
| Part Number | – |
| Detail Description | Cold shrink tube, φ40x170mm, green |
General Specifications
| General Specifications | |
| Material | Silicone |
| Cable type | Corrugated | Elliptical Waveguide | Smoothwall |
| Cable Range | φ12-35 mm | 0.47-1.37 in |
| Color | Green |
| Mastic(Y/N) | N |
| Shrink Ratio | 4:1 |
| Dimensions | |
| Length Before Shrink | 170 mm | 6.69 in |
| Length After Shrink | 185 mm | 7.28 in |
| Inner Diameter Before Shrink(ID) | 40 mm | 1.57 in |
| Inner Diameter After Shrink(ID) | 10 mm | 0.39 in |
| Thickness After Shrink | 3.1 mm | 0.12 in |
| Environmental Specifications | |
| Operating Temperature | -60 °C to +90 °C (-76 °F to +194 °F) |
| Weatherproof Resistance | IP67, based on ISO20653:2013 |
| UV Resistance | ≥1000 hours, base on ASTM G154-16 |
| Packaging and Weights | |
| Height, Packed | 260 mm | 10.23 in |
| Width, Packed | 70 mm | 2.75 in |
| UOM | 1 Pcs |
| Packaging | Bag |
| Weight, Gross | 0.071 kg | 0.156 lbs |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
