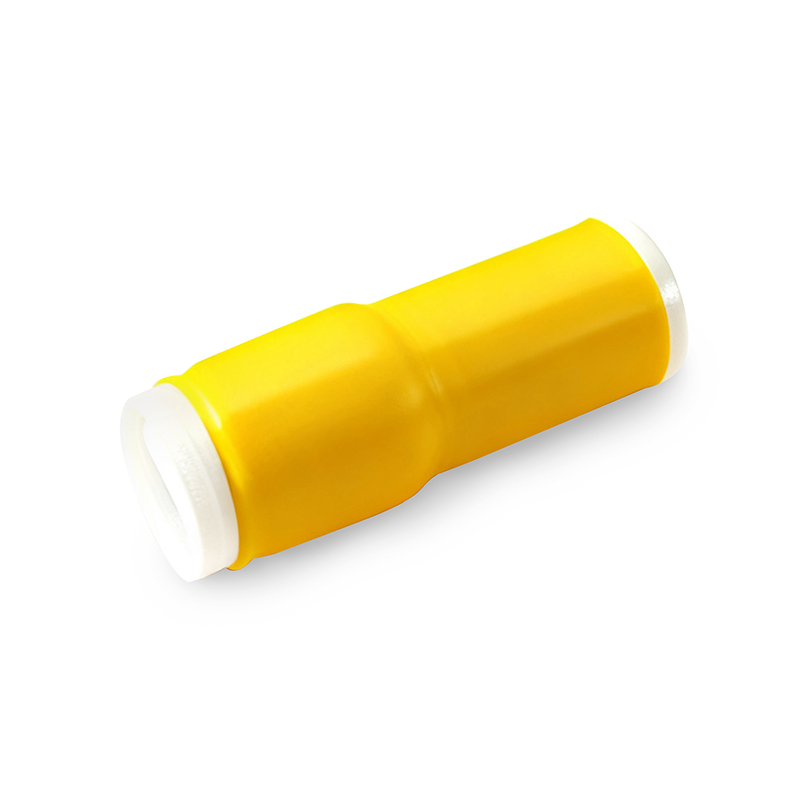

Cold Shrink Tube, Dual Layer, φ30x95mm, Yellow
Item Number TBD31
Easy and quick installation. No special tools or training required for installation. High shrinkage rate-suitable for various cable sizes. Offering good mechanical, insulation protection. Dual layer structure make the protection ability of waterproof more reliable. Widely applied in the power, communication, and oil and gas industries.
Product Classification
| Product Classification | |
| Item Number | TBD31 |
| Part Number | – |
| Detail Description | Cold shrink tube, dual layer, φ40x120mm, application range from 12 to 36mm, built-in butyl mastic |
General Specifications
| General Specifications | |
| Cold Shrink Tube Material | Silicon rubber |
| Inner Layer Material | Butyl mastic |
| Cable type | Corrugated | Elliptical | Smoothwall |
| Cable Range | Φ10 – 26 mm | 0.39 – 1.02 in |
| Color | Yellow |
| Dimensions | |
| Length Before Shrink | 95 mm | 3.74 in |
| Length After Shrink | 115 mm | 4.53 in |
| Inner Diameter Before Shrink(ID) | 30 mm | 1.18 in |
| Inner Diameter After Shrink(ID) | 7 mm | 0.28 in |
| Thickness After Shrink | 3.0 mm | 0.12 in |
| Environmental Specifications | |
| Operating Temperature | -60 °C to +90 °C (-76 °F to +194 °F) |
| Storage Temperature | -40 °C to +50 °C (-40 °F to +122 °F) |
| Storage Life Recommended | 1 Year |
| Weatherproof Resistance | IP68, based on ISO20653:2013 |
| UV Resistance | ≥1000 hours, base on ASTM G154-16 |
| Packaging and Weights | |
| Height, Packed | 205 mm | 8.07 in |
| Width, Packed | 325 mm | 12.80 in |
| Length, Packed | 495 mm | 19.49 in |
| Included | Cold shrink tube |
| UOM | 1 Pcs |
| Packaging | Bag |
| Weight, Gross | 0.035 kg | 0.077 lbs |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
