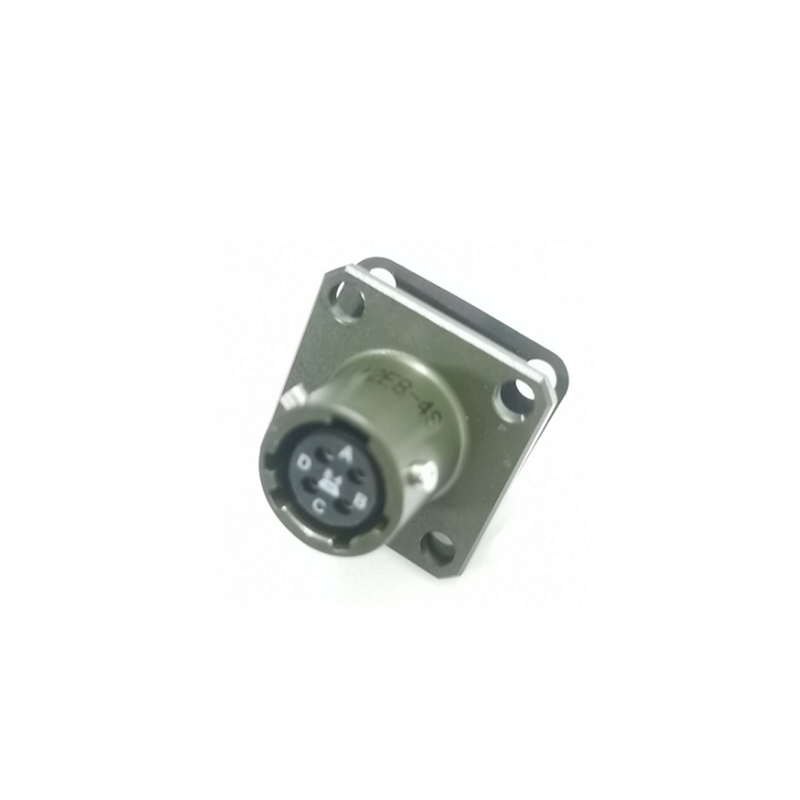

Connector, Female Box Mount Receptacle, 4 Pin Solder
Item Number 6009606
Environmental sealing is achieved with the grommet and clamp design. Pin and socket contacts are machined from low loss copper alloy and gold plated to eliminate contact corrosion and provide an indefinite shelf life. IP67.
Product Classification
| Product Classification | |
| Item Number | 6009606 |
| Part Number | MS3112E8-4S |
| Detail Description | 4 Position Circular Connector Receptacle, Female Sockets Solder Cup |
General Specifications
| General Specifications | |
| Number of Positions | 4 Position |
| Shell Size – Insert | 8-4 |
| Contact Material | Copper |
| Contact Finish | Gold-plating |
| Shell Material | Aluminum |
| Shell Finish | Olive Drab Cadmium |
| Mounting Type | Panel Mount |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Dimensions | |
| Height | 20.6 mm | 0.81 in |
| Width | 20.6 mm | 0.81 in |
| Length | 22.3 mm | 0.88 in |
| Electrical Specifications | |
| Current Rating | 7.5A |
| Voltage Rating | 1200V |
| Contact Resistance | ≤5mΩ |
| Insulation Resistance | ≥5000mΩ |
| Environmental Specifications | |
| Operating Temperature | -55 °C to +125 °C |
| Lifetime | ≥500 times |
| IP Rate | IP67 |
| Packaging and Weights | |
| UOM | 1 Pcs |
| Packaging | Bag |
| Weight, Gross | 0.006 kg | 0.013 lbs |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
