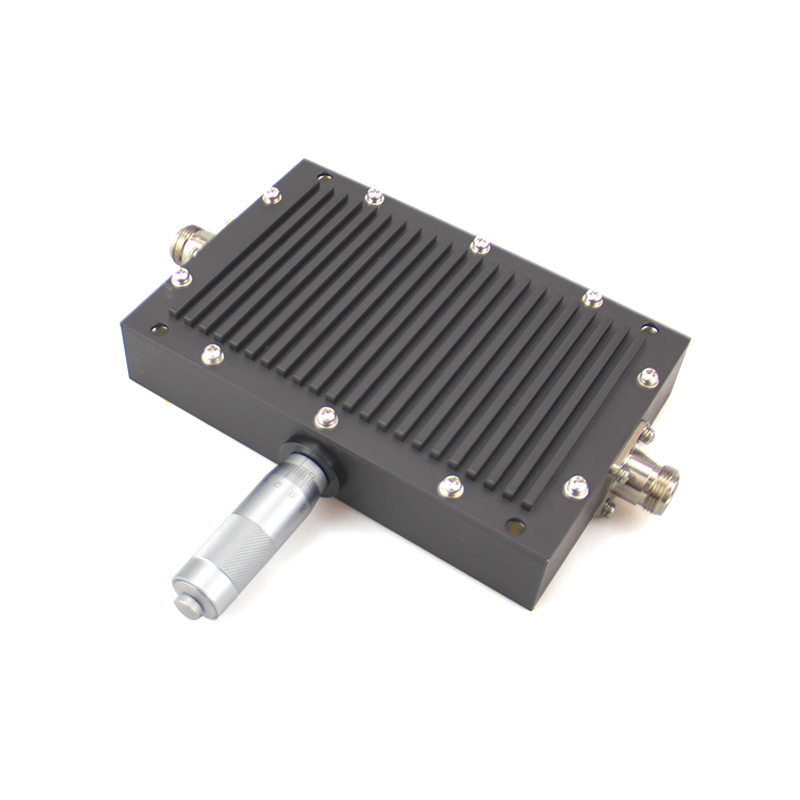

Continously Adjustable Attenuator, N Female To N Female

Item Number 6009432

0 to 10dB Variable Attenuator.Rotary Dial Design For Continuous Adjustment.Frequency Range From 2GHz to 4GHz.N Female Connector Design.

Add to List Download Datasheet

Product Classification
Item Number	6009432
Part Number	–
Detail Description	0 to 10dB Continously adjustable attenuator, N Female To N Female

General Specifications
Bonding Material	Aluminum
Connector Type	N Female To N Female
Dimensions
Length	189.5 mm \| 7.46 in
Width	102.0 mm \| 4.01 in
Height	31.5 mm \| 1.24 in
Environmental Specifications
Operating Temperature	-20°C to +55 °C (-4 °F to +131 °F)
Electrical Specifications
Frequency Range	2GHz to 4GHz
Impedance	50Ω
Attenuation Value	0 to 10dB
VSWR	≤1.5:1
Insertion Loss	≤0.5dB
Input Power	100W
Packaging and Weights
Height, Packed	370 mm \| 14.56 in
Width, Packed	210 mm \| 8.26 in
UOM	Pcs
Packaging	Bag
Weight, Gross	1.21 kg \| 2.67 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
