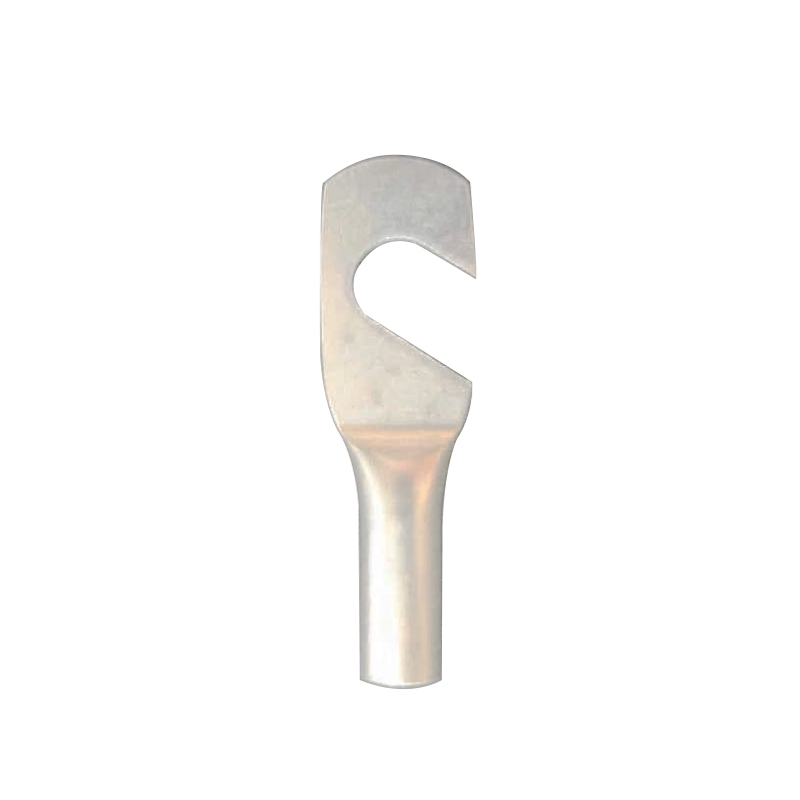

Copper Lug, 10mm², one hole M8, Hook Type, without inspection window
Item Number 6009656
Copper cable lugs are designed for connecting copper cables, coils and Bus-bars. Easy to Install. The absence without inspection window prevents the entry of water or moisture into the crimped joint making these terminals suitable for outdoor applications. The barrel length has been designed to allow easy and accurate positioning of the dies during the crimping operation.
Product Classification
| Product Classification | |
| Item Number | 6009656 |
| Part Number | – |
| Detail Description | Copper Lug, 10mm² , one hole M8, Hook Type, without inspection window |
General Specifications
| General Specifications | |
| Material | Copper |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Surface | Tin-plated |
| Inspection Window | Without inspection window |

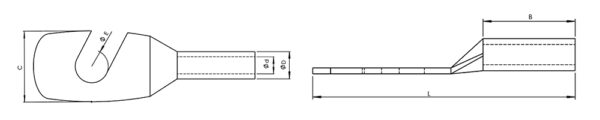

| Dimensions
|
|
| Bolt Size (E) | 0.34 in | 8.6 mm |
| Tang Width (C) | 0.61 in | 15.5 mm |
| Barrel length (B) | 0.35 in | 20.8 mm |
| Overall length (L) | 2.24 in | 57.0 mm |
| Inner diameter (d) | 0.17 in | 4.4 mm |
| Outer diameter (D) | 0.28 in | 7.0 mm |
| Electrical Specifications | |
| Rating – Maximum Voltage | 35KV |
| Environmental Specifications | |
| Operating Temperature | -40 °C to +90°C (-40 °F to +212 °F) |
| Storage Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Packaging and Weights | |
| Included | Lug |
| Packaging Quantity and UOM | 1 pcs |
| Piece Weight | 0.02 lb | 0.008 kg |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
