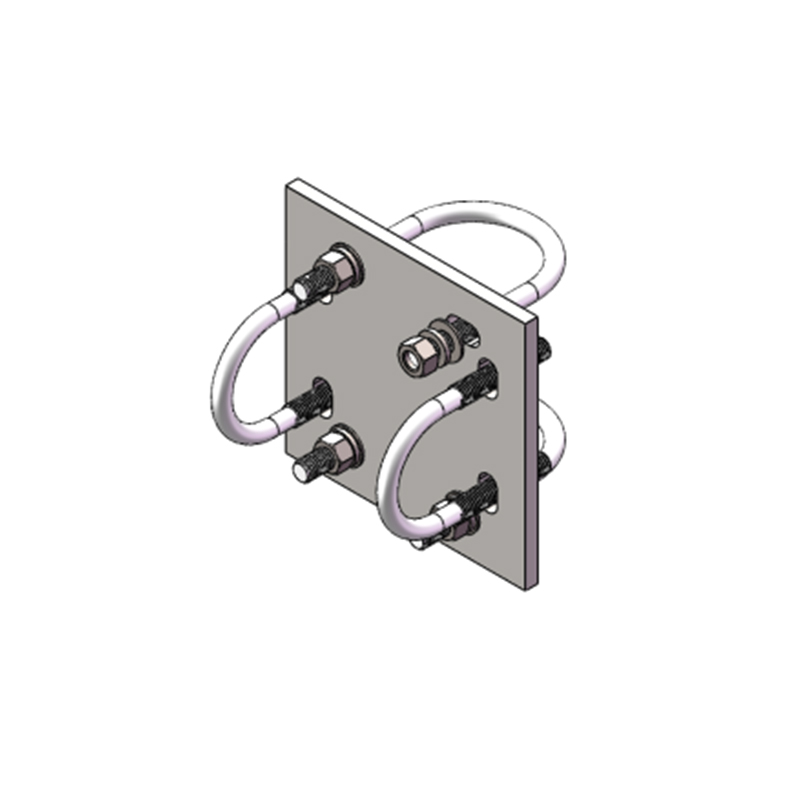

Crossover Plate Kits, For 2-3/8” to 2-7/8” OD Pipe, Q235 Galvanized

Item Number 6009812

Used to attach pipes in 90° degree. Includes 4 U-bolts and hardware.

Classification
Item Number	6009812
Part number	–
Detail Description	Crossover plate kits, for 2-3/8” to 2-7/8” OD pipe, Q235 Galvanized

General Specifications
Metal Material	Q235
Surface Treatment	Galvanized
Mounting	Crossover Plate
Mounting Pipe OD 1	60.325 mm \| 2-3/8 in
Mounting Pipe OD 2	73.025 mm \| 2-7/8 in
Dimensions
Length	184.2 mm \| 7.25 in
Width	177.8 mm \| 7.0 in
Plate Thickness	9.7 mm \| 0.38 in
U-bolts 1 Size	1/2 in x 2-1/2 in x 4-1/2 in
Numbers Of U-bolts 1	2
U-bolts 2 Size	1/2 in x 3 in x 5 in
Numbers Of U-bolts 2	2
Packaging and Weights
Height, Packed	320 mm \| 12.60 in
Width, Packed	220 mm \| 8.66 in
Included	One plate \| 4 U-bolts
UOM	1 Pcs
Packaging	Bag
Weight, Gross	3.405 kg \| 7.507 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
