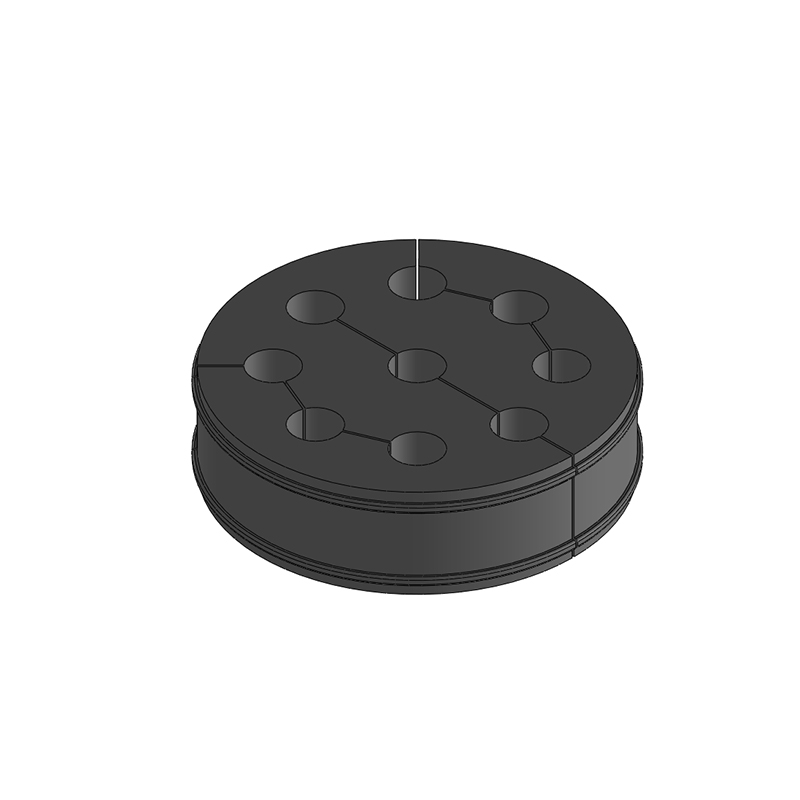

Cushion Insert With Nine Hole, 3/8”, EPDM
Item Number 6009564
Manufactured from EPDM rubber for excellent UV resistance. Use with our 4″ and 5″ boot assemblies.
Product Classification
| Product Classification | |
| Item Number | 6009564 |
| Part Number | – |
| Detail Description | Cushion insert with nine hole for 3/8” coaxial cable, EPDM |
General Specifications
| General Specifications | |
| Material | EPDM |
| Color | Black |
| Shore Hardness | 50±5 |
| Number Of Holes | Nine |
| Cable Type | 3/8” Coax |
| Dimensions | |
| Outer diameter(OD) | 86 mm | 3.34 in |
| Height | 24.5 mm |1 in |
| Hole Size | 11.2 mm | 0.44 in |
| Packaging and Weights | |
| Height, Packed | 220 mm | 8.66 in |
| Width, Packed | 320 mm | 12.60 in |
| UOM | Pcs |
| Packaging | Bag |
| Weight gross | 0.165 kg | 0.364 lbs |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
