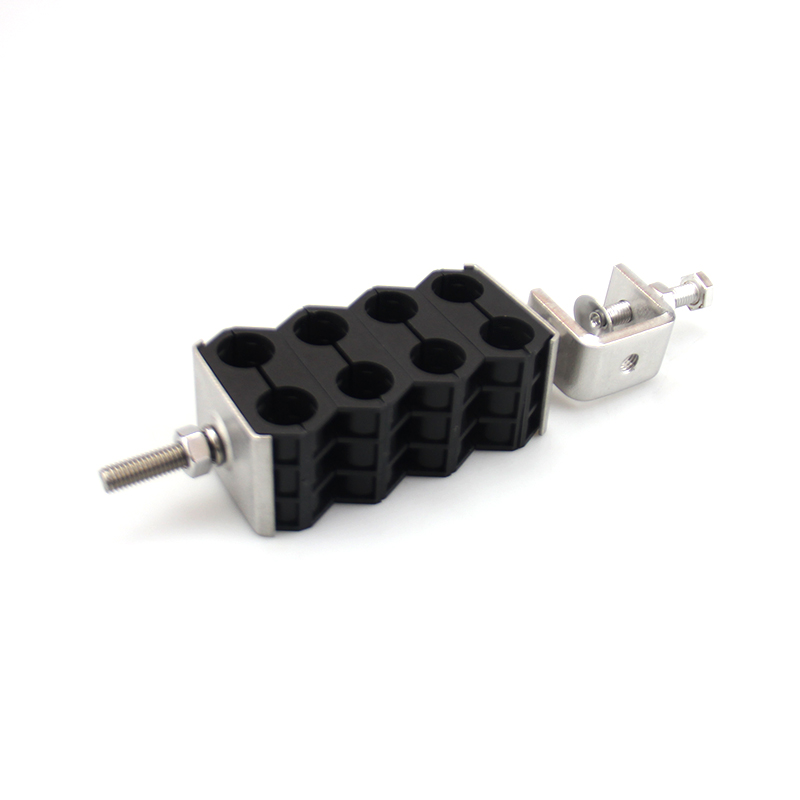

Feeder Cable Clamp, 8 holes, 8×1/2”, With Metal Plate

Item Number 6009628

Easy and quick installation. Robust design & material for outdoor use. Operation Temperature -40~85 ℃.

Classification
Item Number	6009628
Part number	–
Detail Description	Feeder cable clamp, for 8х1/2″ cable, 4 way, includes metal plate

General Specifications
Metal Material	Stainless steel 304
Metal Color	Natural
Block Material	PP
Block Color	Black
Mounting	M8 hardware
Cables Per Hanger	8
Dimensions
Height	36.0 mm \| 1.42 in
Width	51.0 mm \| 2.00 in
Length	220.0 mm \| 8.66 in
Threaded Rod Length	150.0 mm \| 5.90 in
Compatible cable OD, minimum	16 mm \|0.63 in
Compatible cable OD, maximum	17 mm \| 0.67 in
Environmental Specifications
Operating Temperature	-40°C to + 85°C(-40°F to+185°F)
Environmental Strength Capability	Double cable weight
UV Resistance	≥720 hours, base on ISO4892.3-1994
Packaging and Weights
Height, Packed	300 mm \| 11.81 in
Width, Packed	300 mm \| 11.81 in
UOM	1 Pcs
Packaging	Bag
Weight, Gross	0.35 kg \| 0.77 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
