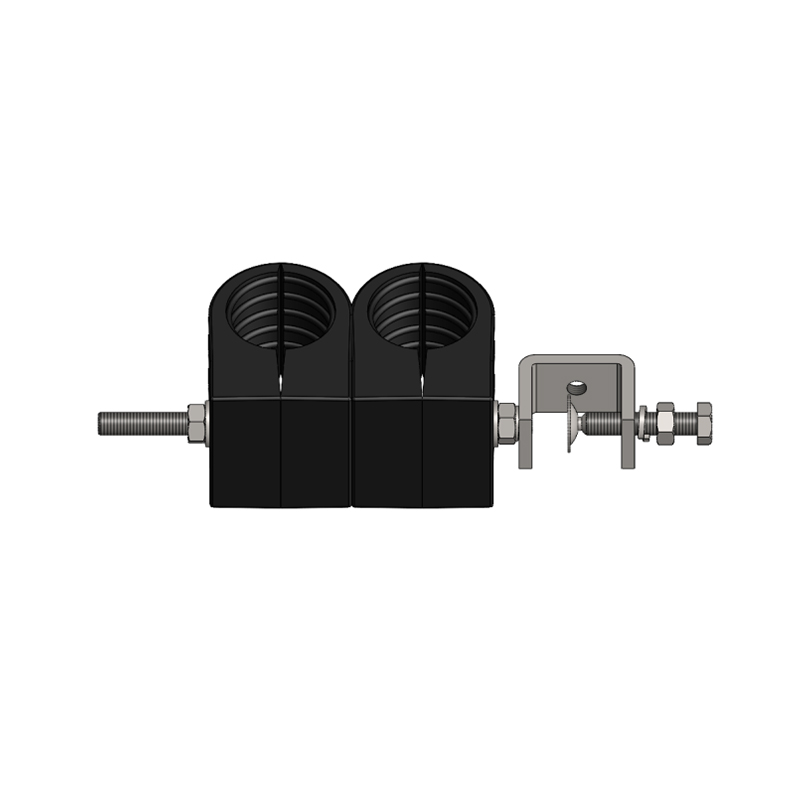

Feeder Cable Clamp, 2 holes, 2×1-1/4”

Item Number 6003920

Easy and quick installation. Robust design & material for outdoor use. Operation Temperature -40~85 ℃. Suitable for cable type 1-1/4 in.

Add to List Download Datasheet

Classification
Item Number	6003920
Part number	–
Detail Description	Feeder cable clamp, for 2×1-1/4” coaxial cable

General Specifications
Metal Material	Stainless Steel 304
Metal Color	Natural
Block Material	PP
Block Color	Black
Mounting	M8 Hardware
Cables Per Hanger	2
Dimensions
Height	55.0 mm \| 2.16 in
Width	67.0 mm \| 2.64 in
Length	220.0 mm \| 8.66 in
Threaded Rod Length	150.0 mm \| 5.90 in
Compatible Cable OD, maximum	41.0 mm \| 1.61 in
Compatible Cable OD, minimum	39.0 mm \| 1.54 in
Environmental Specifications
Operating Temperature	-40°C to +85°C(-40°F to+185°F)
Environmental Strength Capability	Double Cable Weight
UV Resistance	≥720 Hours, base on ISO4892.3-1994
Packaging and Weights
Height, Packed	300 mm \| 11.81 in+
Width, Packed	300 mm \| 11.81 in
UOM	1 Pcs
Packaging	Bag
Weight, Gross	0.289 kg \| 0.637 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
