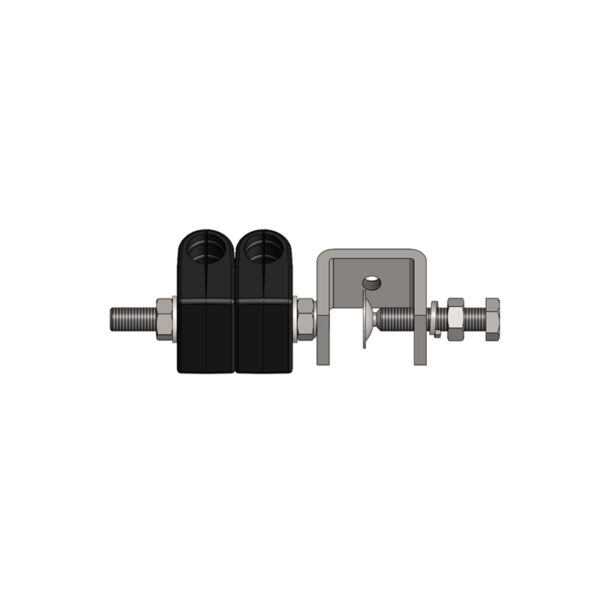

Feeder Cable Clamp, 2 holes, 2×1/2”S

Item Number 6002305

Easy and quick installation. Robust design & material for outdoor use. Operation Temperature -40~85 ℃. Suitable for cable type 1/2 in flexible.

Add to List Download Datasheet

Classification
Item Number	6002305
Part number	–
Detail Description	Feeder cable clamp, for 2×1/2” superflex cable

General Specifications
Metal Material	Stainless Steel 304
Metal Color	Natural
Block Material	PP
Block Color	Black
Mounting	M8 Hardware
Cables Per Hanger	2
Dimensions
Height	36.0 mm \| 1.41 in
Width	35.5 mm \| 1.39 in
Length	150.0 mm \| 5.90 in
Threaded Rod Length	80.0 mm \| 3.15 in
Compatible Cable OD, maximum	14.0 mm \| 0.55 in
Compatible Cable OD, minimum	13.0 mm \| 0.51 in
Environmental Specifications
Operating Temperature	-40°C to +85°C(-40°F to+185°F)
Environmental Strength Capability	Double Cable Weight
UV Resistance	≥720 Hours, base on ISO4892.3-1994
Packaging and Weights
Height, Packed	320 mm \| 12.60 in
Width, Packed	220 mm \| 8.66 in
UOM	1 Pcs
Packaging	Bag
Weight, Gross	0.171 kg \| 0.377 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
