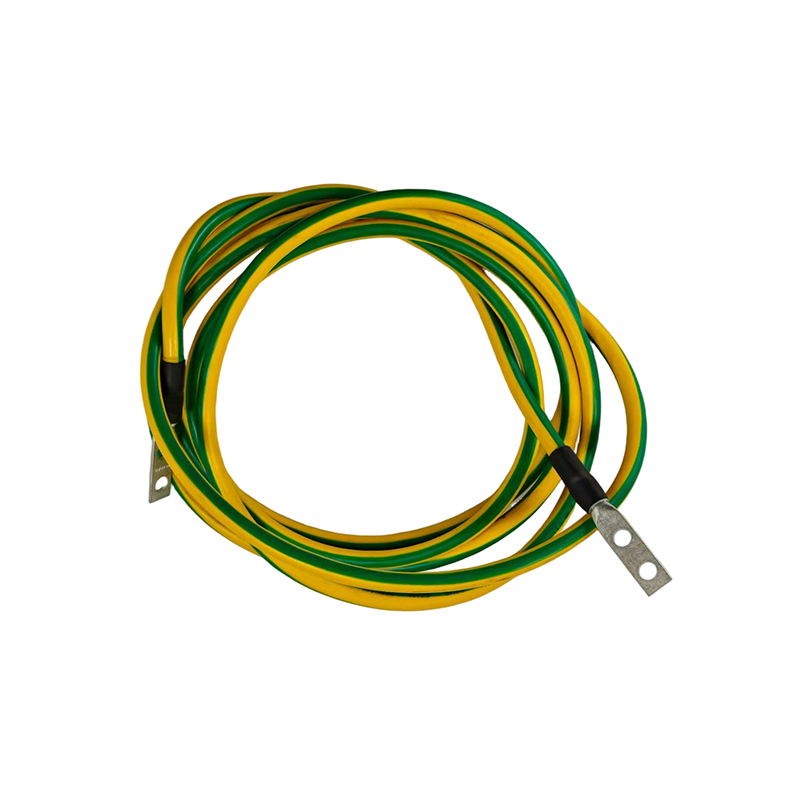

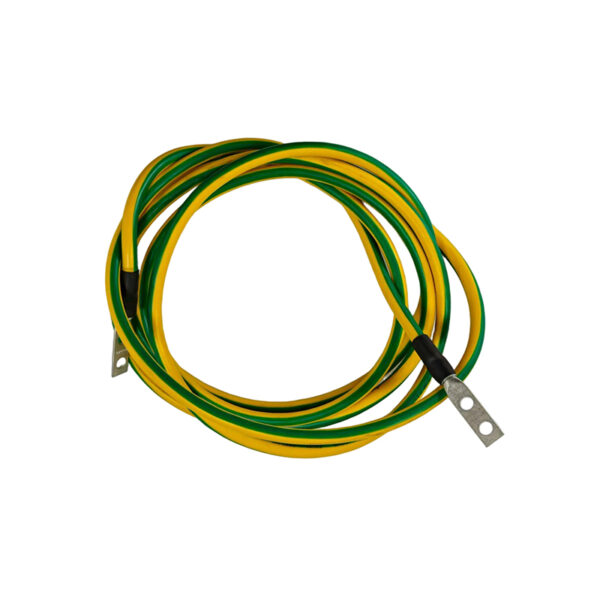

Ground Cable Assembly. AWG6 Green&Yellow Cable, 3 Meter,With 2xAWG6 Lug

Item Number 6009568

Easy and quick installation. Cable meet UL1283 certification.

Product Classification
Item Number	6009568
Part Number	–
Detail Description	Ground cable assembly. AWG6 Green&Yellow Cable, 3 Meter,With 2xAWG6 Lug

General Specifications
Cable Conductor Material	Tinned Copper
Cable Jacket Material	PVC
Cable Jacket Color	Green&Yellow
Cable Gauge	AWG6
Lug Material	Tinned Copper
Lug Type	Two-hole lug
Dimensions
Cable Conductor Structure	275×0.25 mm
Cable Jacket Diameter	8.4 mm \| 0.331 in
Cable Length	3 m \| 118.11 in
Lug Hole Size	6.9 mm \| 0.27 in
Hole Spacing	16 mm \| 5/8 in
Environmental Specifications
Operating Temperature	-20 °C to +105 °C (-4 °F to +221 °F)
Electrical Specifications
Voltage	600V
Packaging and Weights
Height, Packed	320 mm \| 12.60 in
Width, Packed	220 mm \| 8.66 in
UOM	Pcs
Packaging	Bag
Weight, Gross	0.550 kg \| 1.212 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
