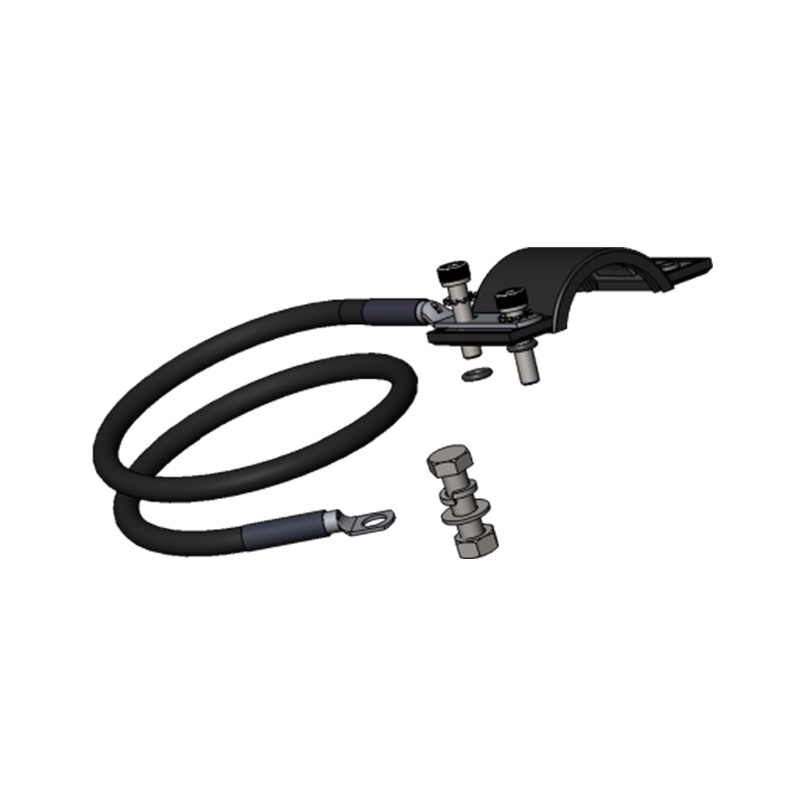

Grounding Kit, High Speed Type, 1/4”, 0.8 Meter

Item Number 6009387

Easy and quick installation. Low contact transition resistance of maximum 20mΩ. Operation Temperature -40~70 ℃. Waterproof IP68.

Add to List Download Datasheet

Product Classification
Item Number	6009387
Part Number	–
Detail Description	Grounding kit, high speed type, for 1/4” cable, 0.8 Meter, installation accessories included

General Specifications
Bonding Conductor Material	Copper Clad Aluminum
Bonding Conductor Wire Size	AWG6
Grounding Strap Material	Stainless Steel Coated EPDM
Lug Type	One-hole lug
Screw Material	Stainless Steel
Flat washer Material	Stainless Steel
Spring washer Material	Stainless Steel
Nut Material	Stainless Steel
Dimensions
Bonding Conductor Length	0.8 m \| 2.68 feet
Lug Hole Size	M8
Screw Size	M8x25 mm
Suitable Cable	1/4”
Environmental Specifications
Operating Temperature	-40°C to +70 °C (-40 °F to +158 °F)
Waterproof	IP68, base on IEC60529
Electrical Specifications
Contact Transition Resistance	Maximum 10mΩ
Packaging and Weights
Height, Packed	200 mm \| 7.87 in
Width, Packed	200 mm \| 7.87 in
Included	Grounding kit \| Hardware \| Release Paper
UOM	Kit
Packaging	Bag
Weight, Gross	0.181 kg \| 0.399 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
