Grounding Kit, Tinned Clip-on Type, 1/2”, 1.22 Meter, With Two 3/8″ Hole Lug, With Conductive Silicone Grease
Item Number 6009810
Easy and quick installation. Low contact transition resistance of maximum 10mΩ. Operation temperature -40~70 ℃. Waterproof IP68.
Product Classification
| Product Classification | |
| Item Number | 6009810 |
| Part Number | – |
| Detail Description | Grounding kit, tinned clip-on type, for 1/2” cable, cable length 1.22m, installation accessories included and conductive silicone grease |
General Specifications
| General Specifications | |
| Bonding Conductor Material | Copper |
| Bonding Conductor Wire Size | 6 AWG |
| Grounding Strap Material | Copper, Tin plated |
| Lug Type | Two-hole lug |
| Screw Material | Stainless Steel |
| Flat Washer Material | Stainless Steel |
| Spring Washer Material | Stainless Steel |
| Nut Material | Stainless Steel |
| Tape Material | PVC & Butyl |
| Dimensions | |
| Bonding Conductor Length | 1.22 m | 4 feet |
| Lug Hole Size | 10.2 mm | 0.40 in |
| Screw Size | 3/8”x1” |
| Suitable Cable | 1/2” |
| Environmental Specifications | |
| Operating Temperature | -40°C to +70 °C (-40 °F to +158 °F) |
| Weatherproofing Method | Butyl and electric tape |
| Electrical Specifications | |
| Contact Transition Resistance | Maximum 10mΩ |
| Packaging and Weights | |
| Height, Packed | 320 mm | 12.60 in |
| Width, Packed | 220 mm | 8.66 in |

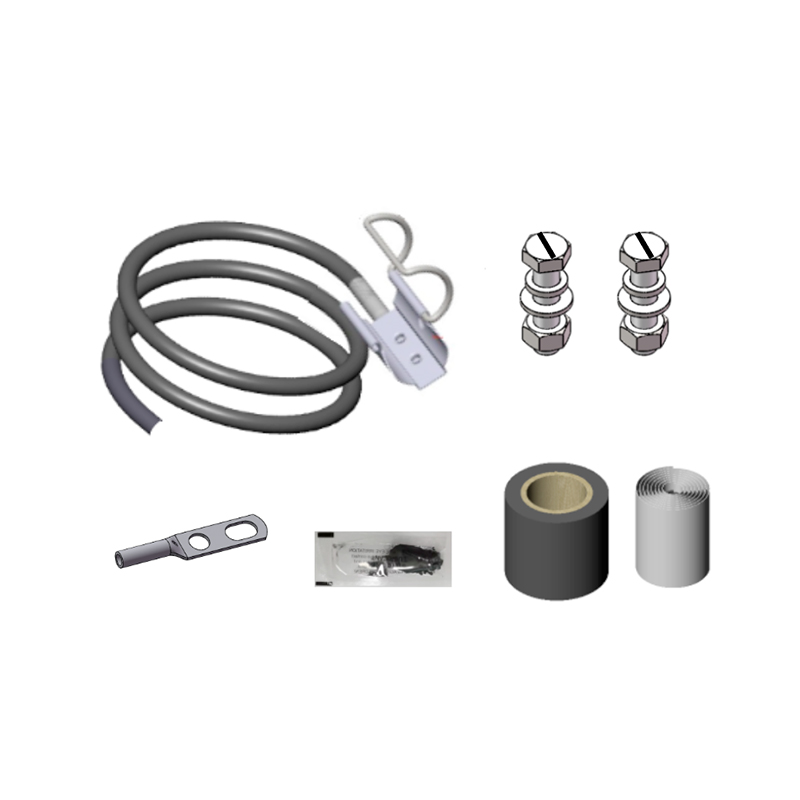

| Included | Grounding kit | Hardware | One roll of PVC tape | One roll of butyl rubber tape | One conductive silicone grease |
| UOM | Kit |
| Packaging | Bag |
| Weight, Gross | 0.756 kg | 1.666 lbs |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
