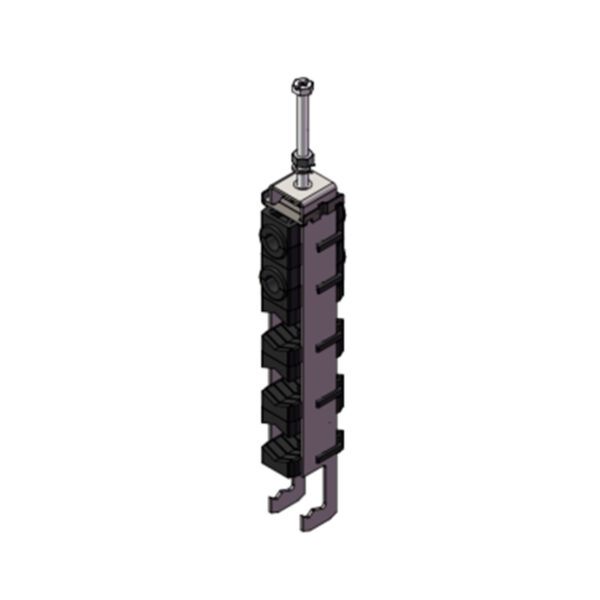

Hook Cable Clamp, M Type, 2×6-10mm+3×16-21mm

Item Number 6008581

Easy and quick installation. Robust design & material for outdoor use. Operation Temperature -40~85 ℃. Hooking on round ø 8-25 and flat 3-25 mm.

Add to List Download Datasheet

Product Classification
Item Number	6008581
Part Number	–
Detail Description	Hook cable clamp for 2×6-10mm+3×16-21mm, Hooking on round ø 8-25 and flat 3-25 mm

General Specifications
Metal Material	Stainless steel 304
Block Material	PA6
Block Color	Black
Barrel Cushion Material	EPDM
Cables Per Hanger	1 X 6-10 mm+4 X 16-21 mm
Dimensions
Height	297.0 mm \| 11.69 in
Width	22.5 mm \| 0.89 in
Length	46.0 mm \| 1.81 in
Compatible Cable Jacket OD, maximum	21.0 mm \| 0.827 in
Compatible Cable Jacket OD, minimum	6.0 mm \| 0.236 in
Environmental Specifications
Operating Temperature	-40 °C to +85 °C (-40 °F to +185 °F)
Corrosion Resistance	≥96 hours in salt spray chamber, base on ISO 9227:2017
UV Resistance	≥720 hours, base on ISO4892.3-1994
Vibration Test	≥6Hours,base on IEC 60068-2-6-2007
Packaging and Weights
Height, Packed	320 mm \| 12.598 in
Width, Packed	220 mm \| 8.661 in
UOM	1 Pcs
Packaging	Bag
Weight, Gross	0.261 kg \| 0.575 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
