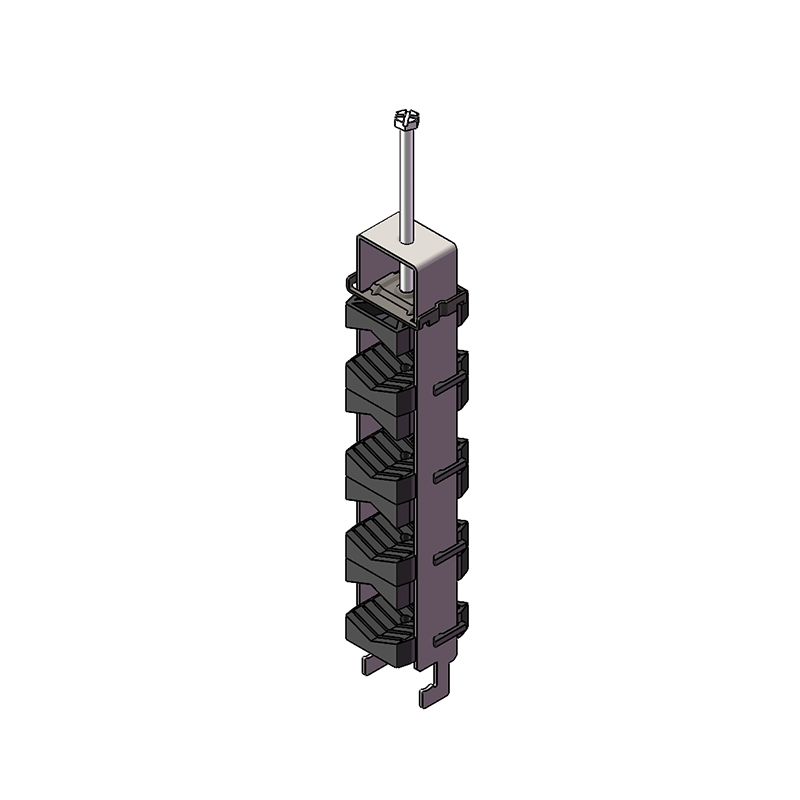

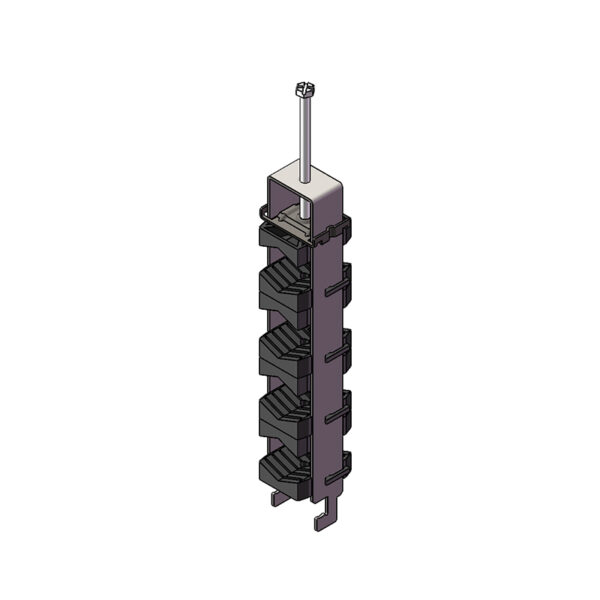

Hook Cable Clamp,E Type,4×14-32mm
Item Number 6009469
Easy and quick installation. Robust design & material for outdoor use. Operation Temperature -40~85 ℃. Hooking on section 40×22mm, flat and round 3-12 mm.
Product Classification
| Product Classification | |
| Item Number | 6009469 |
| Part Number | – |
| Detail Description | Hook Cable Clamp for 4×14-32mm OD cable, hooking on section 40×22, flat and round 3-12 mm |
General Specifications
| General Specifications | |
| Metal Material | Stainless steel 304 |
| Block Material | PA6 |
| Block Color | Black |
| Cables Per Hanger | 4 x 14-32 mm |
| Dimensions | |
| Height | 350.0 mm | 13.78 in |
| Width | 44.5 mm | 1.75 in |
| Length | 45.0 mm | 1.63 in |
| Compatible Cable Jacket OD, maximum | 32.0 mm | 1.26 in |
| Compatible Cable Jacket OD, minimum | 14.0 mm | 0.55 in |
| Environmental Specifications | |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Corrosion Resistance | ≥96 hours in salt spray chamber, base on ISO 9227:2017 |
| UV Resistance | ≥720 hours, base on ISO4892.3-1994 |
| Vibration Test | ≥6 hours,base on IEC 60068-2-6-2007 |
| Packaging and Weights | |
| Height, Packed | 600 mm | 23.62 in |
| Width, Packed | 150 mm | 5.90 in |
| UOM | 1 Pcs |
| Packaging | Bag |
| Weight, Gross | 0.291 kg | 0.642 lbs |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
