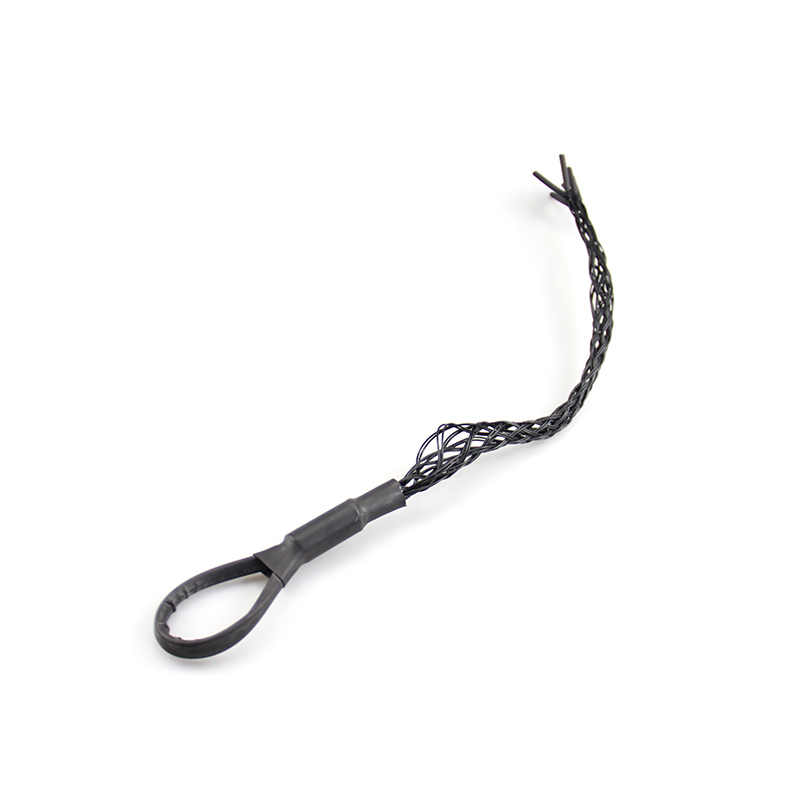

Pulling Grip, Offset Eye, Cable Range 25-36mm, Black, Aramid
Item Number 6009394
Made of (Kevlar)Fiber Aramid, High strength during supporting cables.Closed mesh support grips are used when the end of the cable is accessible.No rusting worries, no-metallic will not interfere with signal transmission.The offset eye grip is designed to support the cable weight as it hangs vertically or horizontally.Plastic coating protects the Aramid from UV, ensuring stable performance of the Aramid.CE certified.
Product Classification
| Product Classification | |
| Material Number | 6009394 |
| Part Number | – |
| Detail Description | Pulling Grip, Offset Eye, Cable Range 25-36mm，Black,Aramid |
General Specifications
| Details | |
| Cable Range | 0.98-1.42 in | 25.0-36.0 mm |
| Mesh Length | 23.6 in | 600.0 mm |
| Eye Length | 7.1 in | 180.0 mm |
| Approximate Break Strength | 2000 lbs | 907 kg |
| Working Load | 200 lbs |90.7 kg (Safety Factor 10*) |
| Mesh Material | Aramid Fiber |
| Packaging and Weights | |
| UOM | 1 pcs |
| Packaging | Bag |
| Weight, gross | 0.44 lb | 0.20 kg |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
| CE | Compliant |
