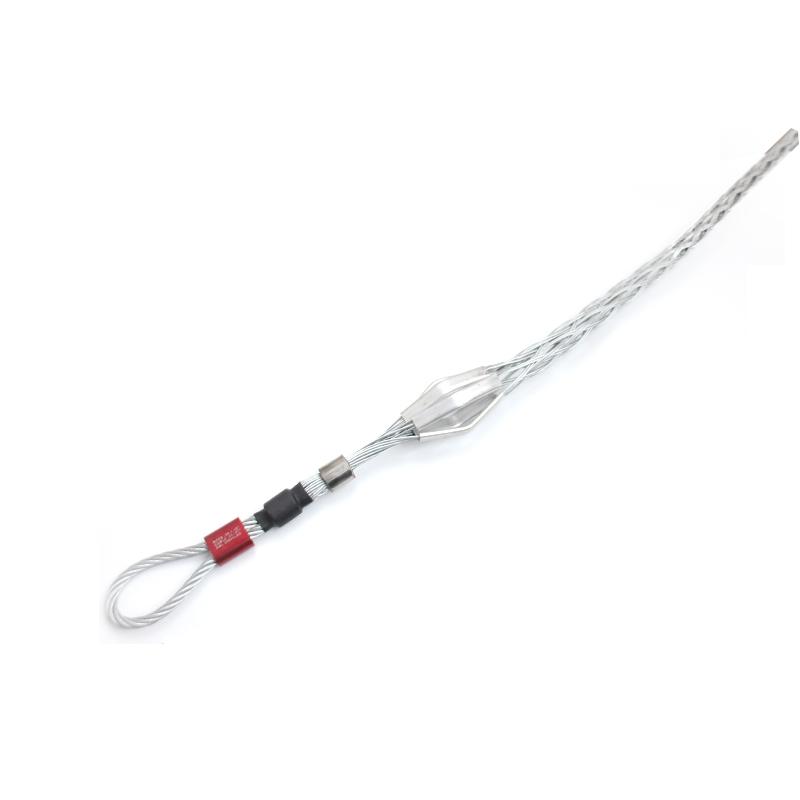

Pulling Grip, Single Eye,For 0.63-0.87″Conductor/0.75-1.10″Rope,Galvanized Steel,Red
Item Number 6009622
Used for pulling fiber optic cables in overhead, underground, conduits, and enclosures. Flexible eye protects cable head from damage.Smooth surface and flexible eye make the pulling grips Optics an excellent tool for pulling cables in and around confined areas.The aluminum shoulder protectors of the pulling grip center the grip within a raceway and keeps the cables safe from abrasions.CE certified.
Product Classification
| Product Classification | |
| Item Number | 6009622 |
| Part Number | – |
| Detail Description | Pulling Grip,Single Eye,For 0.63-0.87″Conductor /0.75-1.10″Rope,Galvanized Steel,Red |
General Specifications
| Details | |
| Conductor/Rope Range | 0.63-0.87”/0.75-1.10” | 16.0-22.1mm/19.1-27.9mm |
| Mesh Length | 48.0 in | 1219.2 mm |
| Eye Length | 13.0 in | 330.2 mm |
| Approximate Break Strength | 16000 lbs | 7257 kg |
| Working Load | 3200 lbs | 1451 kg (Safety Factor 5*) |
| Mesh Material | Galvanized Steel |
| Packaging and Weights | |
| UOM | 1 pcs |
| Packaging | Bag |
| Weight, gross | 3.30 lb | 1.50 kg |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
| CE | Compliant |
