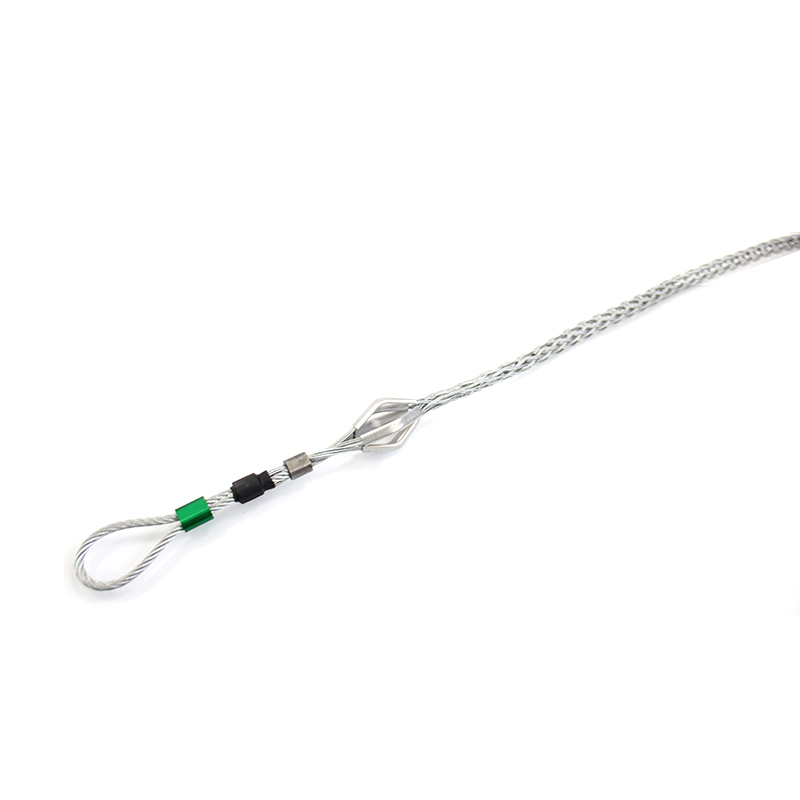

Pulling Grip,Single Eye,For 0.38-0.62″Conductor/0.50-0.90″ Rope, Galvanized Steel,Drake Green
Item Number 6009304
Used for pulling fiber optic cables in overhead, underground, conduits, and enclosures. Flexible eye protects cable head from damage.Smooth surface and flexible eye make the pulling grips Optics an excellent tool for pulling cables in and around confined areas.The aluminum shoulder protectors of the pulling grip center the grip within a raceway and keeps the cables safe from abrasions.CE certified.
Product Classification
| Product Classification | |
| Item Number | 6009304 |
| Part Number | – |
| Detail Description | Pulling Grip,Single Eye,For 0.38-0.62″Conductor /0.50-0.90″Rope, Galvanized Steel,Drake Green |
General Specifications
| Details | |
| Conductor/Rope Range | 0.38-0.62”/0.50-0.90” | 9.7-15.7mm/12.7-22.9mm |
| Mesh Length | 36.0 in | 914.4 mm |
| Eye Length | 12.0 in | 304.8 mm |
| Approximate Break Strength | 11200 lbs | 5080 kg |
| Working Load | 2240 lbs | 1016 kg (Safety Factor 5*) |
| Mesh Material | Galvanized Steel |
| Packaging and Weights | |
| UOM | 1 pcs |
| Packaging | Bag |
| Weight, gross | 1.76 lb | 0.80 kg |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
| CE | Compliant |
Additional Documentation and Resources
-
Product Brochure
-
Standards and Regulations
