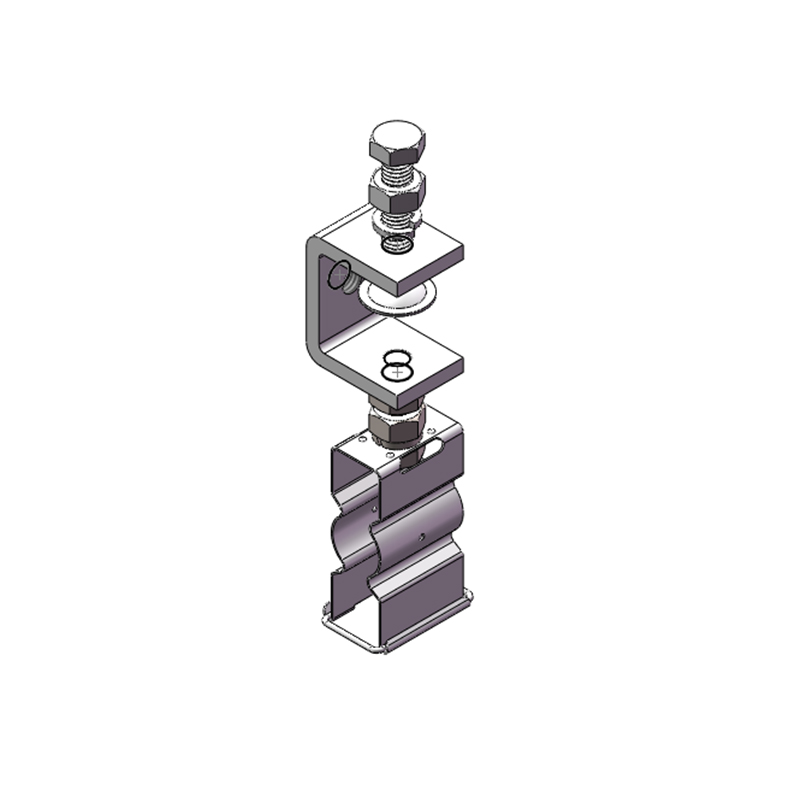

Radiating Cable Clamp, 1/2″, With U Clamp
Item Number 6009575
Easy and quick installation. Robust design & material for outdoor / indoor use.
Product Classification
| Product Classification | |
| Item Number | 6009575 |
| Part Number | – |
| Detail Description | Radiating cable clamp, for 1/2″ cable, with U clamp |
General Specifications
| General Specifications | |
| Metal Material | Stainless steel 304 |
| Color | Natural & Black |
| Dimensions | |
| Compatible Cable Jacket OD, maximum | 17.0 mm | 0.67 in |
| Compatible Cable Jacket OD, minimum | 15.0 mm | 0.59 in |
| Normal Size | 1/2 in |
| Environmental Specifications | |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Vibration Survival Test | ≥6 hours at resonant frequency, base on IEC 60068-2-6 |
| Packaging and Weights | |
| Height, Packed | 300 mm | 11.81 in |
| Width, Packed | 220 mm | 8.66 in |
| UOM | 1 Pcs |
| Packaging | Bag |
| Weight, Gross | 0.131 kg | 0.288 lbs |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
Additional Documentation and Resources
-
Product Brochure
-
Standards and Regulations
