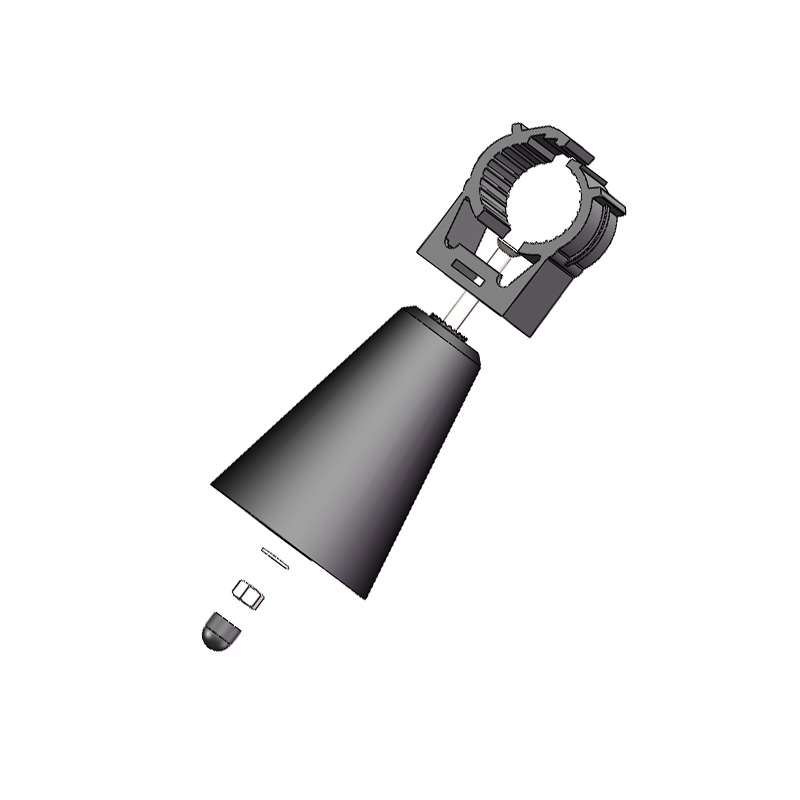

Radiating Cable Clamp, 7/8″ , With M5x95mm Screw

Item Number 6009777

Easy and quick installation. Robust design & material for outdoor use. Operation Temperature -40~85 ℃. Fixed wall distance 80 mm.

Add to List Download Datasheet

Product Classification
Item Number	6009777
Part Number	–
Detail Description	Radiating cable clamp, for 7/8” radiating cable, with M5x95mm Screw

General Specifications
Block Material	PA6
Round Base Material	PA6
Base Color	Black
Bolt Material	Stainless Steel 304
Cap Material	PE
Cable Size	7/8”
Dimensions
Round Base Height	80 mm \| 3.15 in
Round Base Diameter	59 mm \| 2.32 in
Bolt Size	M5x95 mm
Cap Size	M5
Compatible Cable OD, maximum	29 mm \| 1.14 in
Compatible Cable OD, minimum	27 mm \| 1.06 in
Hanger Spacing, maximum	1.0 m \| 3.3 feet
Environmental Specifications
Operating Temperature	-40°C to +85°C(-40°F to+185°F)
Flammability	UL94 V-0
Packaging and Weights
Height, Packed	300 mm \| 11.81 in
Width, Packed	300 mm \| 11.81 in
UOM	1 Pcs
Packaging	Bag
Weight, Gross	0.122 kg \| 0.269 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
