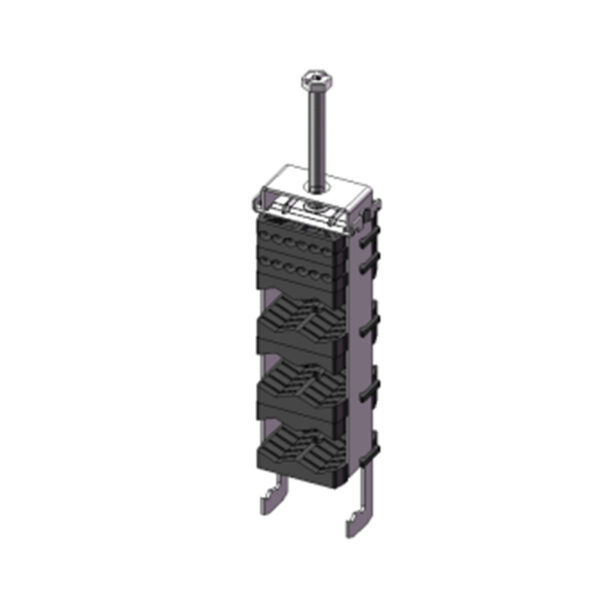

Hook Cable Clamp, M Type, 18 holes, 12×5-7mm+6×10-22mm

Item Number 6004387

Easy and quick installation. Robust design & material for outdoor use. Operation Temperature -40~85 ℃. Hooking on round ø 8-25 and flat 3-25 mm.

Add to List Download Datasheet

Product Classification
Item Number	6004387
Part Number	–
Detail Description	Hook cable clamp, for 12×5-7mm OD cable and 6×10-22mm, hooking on round ø8-25mm and flat 3-25mm

General Specifications
Metal Material	Stainless Steel 304
Block Material	PA6
Block Color	Black
Cables Per Hanger	18
Dimensions
Height	285 mm \| 11.22 in
Width	45.0 mm \| 1.77 in
Length	56.7 mm \| 2.23 in
Compatible Cable 1 OD, maximum	7.0 mm \| 0.275 in
Compatible Cable 1 OD, minimum	5.0 mm \| 0.625 in
Compatible Cable 2 OD, maximum	22.0 mm \| 0.87 in
Compatible Cable 2 OD, minimum	10.0 mm \| 0.39 in
Environmental Specifications
Operating Temperature	-40°C to +85°C(-40°F to+185°F)
Environmental Strength Capability	Double Cable Weight
UV Resistance	≥720 Hours, base on ISO4892.3-1994
Vibration Test	≥6 Hours,base on IEC 60068-2-6-2007
Packaging and Weights
Height, Packed	320 mm \| 12.60 in
Width, Packed	220 mm \| 8.66 in
UOM	1 Pcs
Packaging	Bag
Weight, Gross	0.302 kg \| 0.666 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
