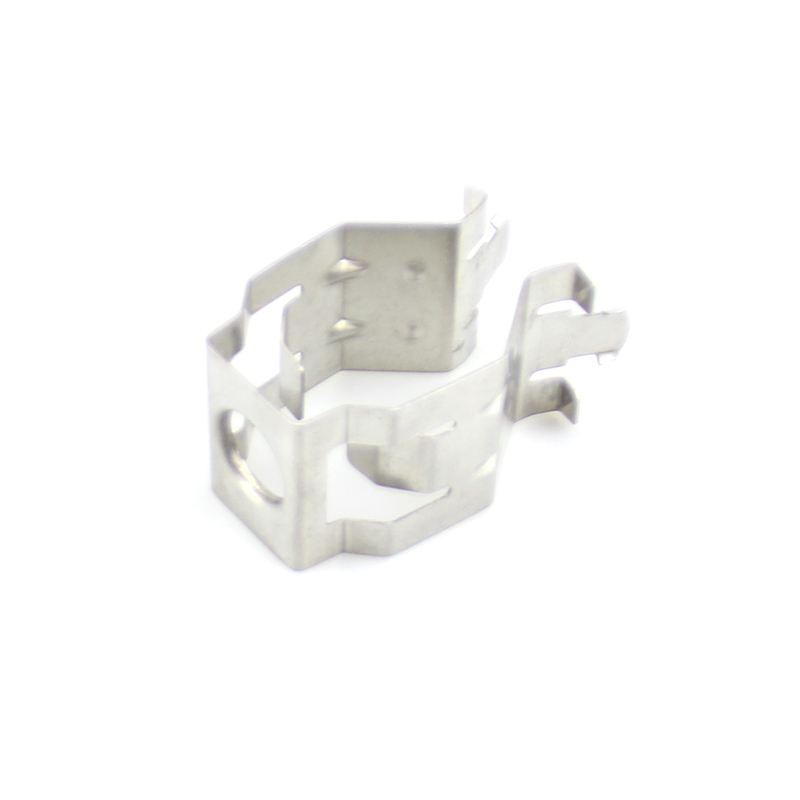

Stackable Snap In, 1-1/4″, SS304
Item Number 6008419
Easy and quick installation, no hardware needed. Robust design & material for outdoor / indoor use. Install in 3/4 in holes. Stack up to three cables.
Product Classification
| Product Classification | |
| Item Number | 6008419 |
| Part Number | – |
| Detail Description | Stackable snap-in hanger, for 1-1/4 in cable, SS304 |
General Specifications
| General Specifications | |
| Material | Stainless steel 304 |
| Color | Natural |
| Mounting | 3/4 in drilled cable ladder |
| Dimensions | |
| Height | 40.0 mm | 1.57 in |
| Width | 46.0 mm | 1.81 in |
| Length | 79.0 mm | 3.11 in |
| Compatible Cable Jacket OD, maximum | 43.2 mm | 1.70 in |
| Compatible Cable Jacket OD, minimum | 37.6 mm | 1.48 in |
| Normal Size | 1-1/4 in |
| Environmental Specifications | |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| UV Resistance | ≥720 hours, base on ISO4892.3-1994 |
| Corrosion Resistance | ≥168 hours in salt spray chamber, base on IEC 60068-2-11 |
| Vibration Survival Test | ≥6 hours at resonant frequency, base on IEC 60068-2-6 |
| Packaging and Weights | |
| Height, Packed | 320 mm | 12.598 in |
| Width, Packed | 220 mm | 8.661 in |
| UOM | 1 Pcs |
| Packaging | Bag |
| Weight, Gross | 0.043 kg | 0.095 lbs |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
