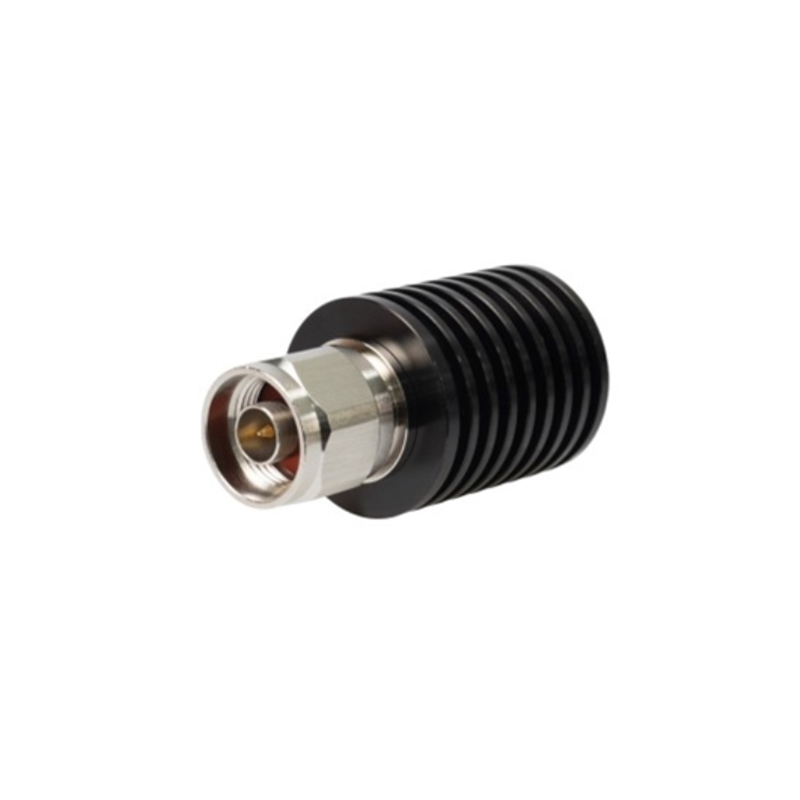

Termination Microwave, 10W, N Male

Item Number 6009644

Wide Frequency Range from DC to 3GHz. With N male connector.

Product Classification
Item Number	6009644
Part Number	–
Detail Description	Termination microwave, 10W, N Male

General Specifications
Connector Material	Brass Ternary Alloy Plated
Pin Material	Brass Silver Plated
Housing Material	Aluminium Black Anodised
Connector Type	N Male
Dimensions
Length	48.5 mm \| 1.91 in
Outer Diameter	30.0 mm \| 1.18 in
Electrical Specifications
Nominal Impedance	50 Ω
Power	10 Watts
Peak Power	≥5kW (1µs pulse width 0.2% duty cycle)
Frequency Range	DC-3GHz
Max VSWR	≤1.15:1
Environmental Specifications
Operating Temperature	-55°C to +125 °C (-67 °F to +257 °F)
Packaging and Weights
Height, Packed	60 mm \| 2.36 in
Width, Packed	50 mm \| 2.36 in
UOM	Pcs
Packaging	Carton
Weight, Gross	0.072 kg \| 0.159 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
