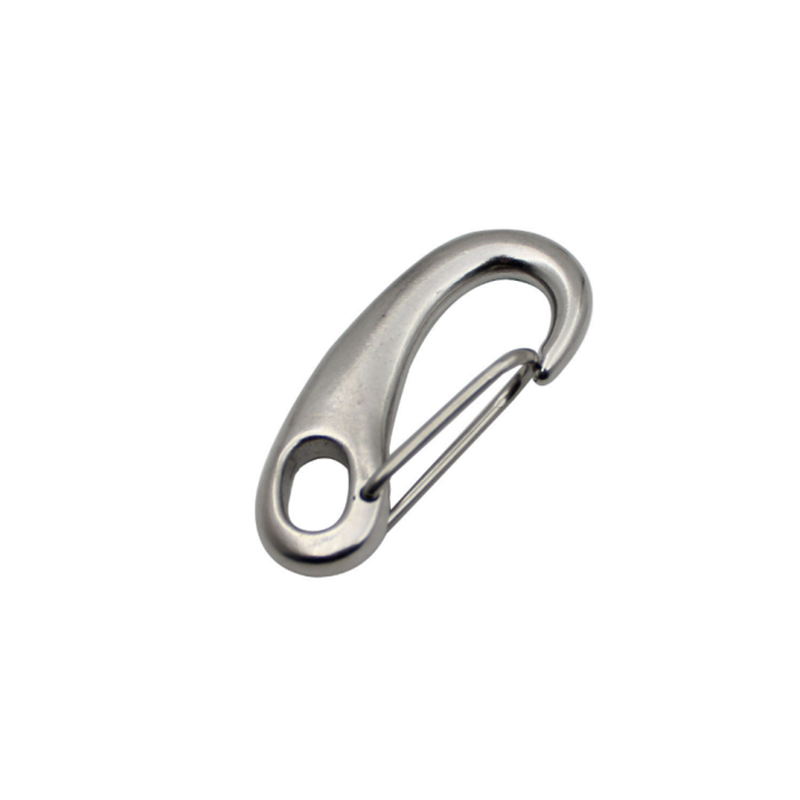

EGG-SHAPED SNAP HOOK,70mm,SS316
Item Number 6009746
Easy and quick installation. Made of type 316 stainless steel for superior corrosion resistance, durability, and a compact yet high-load design.

Product Classification
| Product Classification | |
| Item Number | 6009746 |
| Part number | — |
| Detail Description | EGG-SHAPED SNAP HOOK, 70mm,SS316 |
General Specifications
| General Specifications | |
| Material | 316 Stainless Steel |
| Size | 70mm |
| WLL | 300KG |

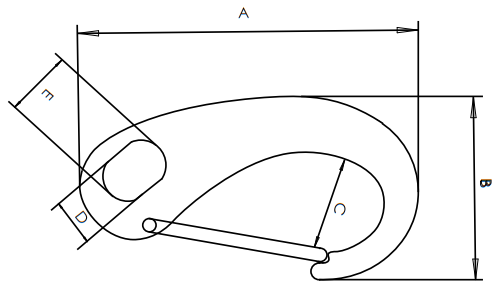

| Dimensions
|
|
| Dimension A | 70mm |
| Dimension B | 33mm |
| Dimension C | 15.5mm |
| Dimension D | 9.8mm |
| Dimension E | 14.5mm |
| Packaging and Weights | |
| Included | EGG-SHAPED SNAP HOOK, 70mm,SS316 |
| Weight, Gross | 0.054 kg |0.119lbs |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
